Raven RP3 Automatic Door Bottom Weather Seal and Threshold Seal for Doors

SKU: RP3C4

Keep the elements and pests outside where they belong with this automatic door bottom weather seal. Activated by the opening and closing of the door, it drops down as the door shuts to form a reliable barrier against drafts, rain, dust, light, noise, and insects, then lifts clear again as the door opens. The durable, flexible EPDM weather strip compresses smoothly against the floor or threshold to reduce energy loss, improve comfort, and help protect interior spaces in homes, garages, and commercial entries.

Key Features:

Ideal for single, inward-opening, butt hinged doors, it offers an effective and discreet solution to improve comfort and energy efficiency in both residential and commercial spaces. Suitable for a wide range of standard door widths, the seal can be trimmed to achieve a precise fit, making it an easy upgrade for new builds, renovations or weatherproofing existing doors.

  • Automatically lifts to clear carpet and floor coverings
  • Seals tight when the door closes to block drafts, dust, insects and noise
  • Ideal for single, inward opening, butt hinged doors
  • Suitable for a broad range of door widths and can be cut to size
  • Easy fit installation with fixings included
  • Quality, long life anodised aluminium body
  • Durable, UV treated rubber seal for long-term performance

Manufactured from high-quality anodised aluminium with a UV treated rubber seal, this automatic door bottom is built for long life in demanding environments. The robust construction helps maintain flexibility and sealing effectiveness over time, reducing heat loss, improving acoustic insulation and enhancing overall door performance.

Location: Door bottom

Size/Length (Length can be cut back to): 920mm (385mm), 1220mm (920mm)

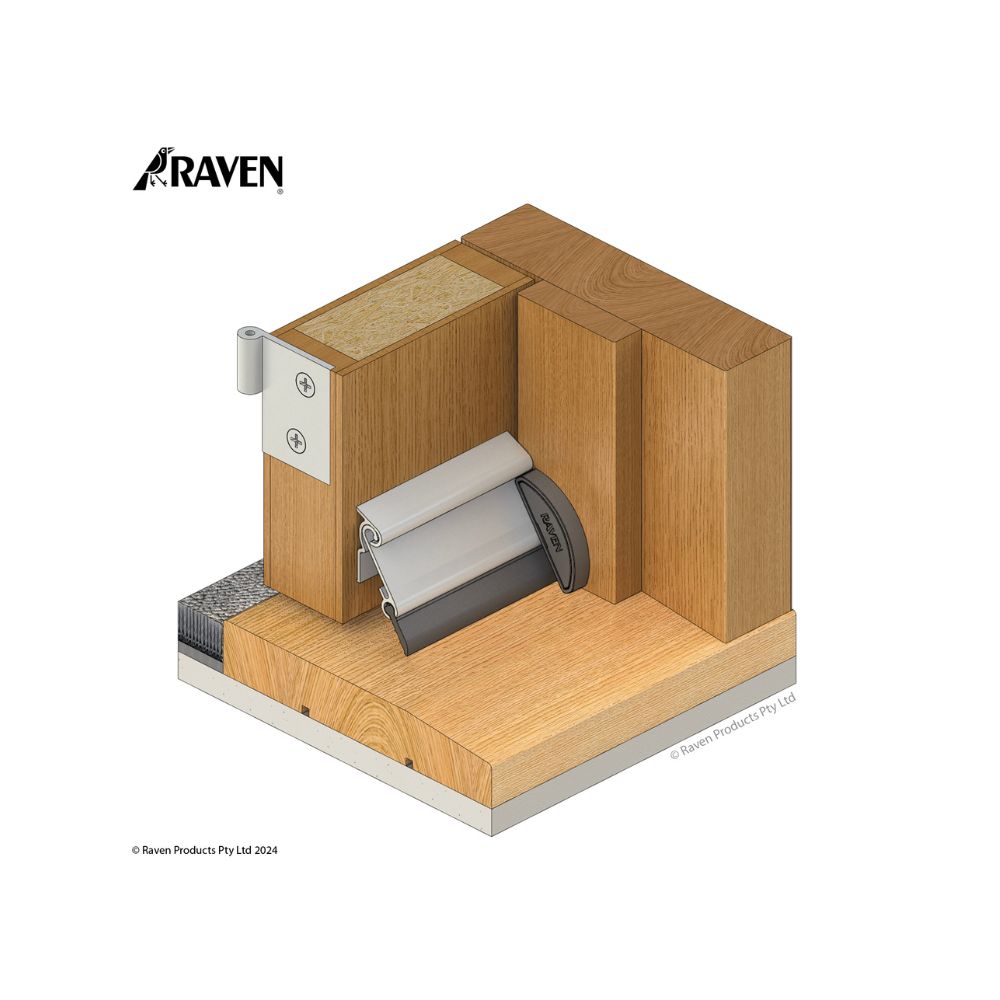

Fixing: Face Mounted, Screw Fixed

Min & Max Gap: 0mm to 16mm

Replacement Seals: RP303

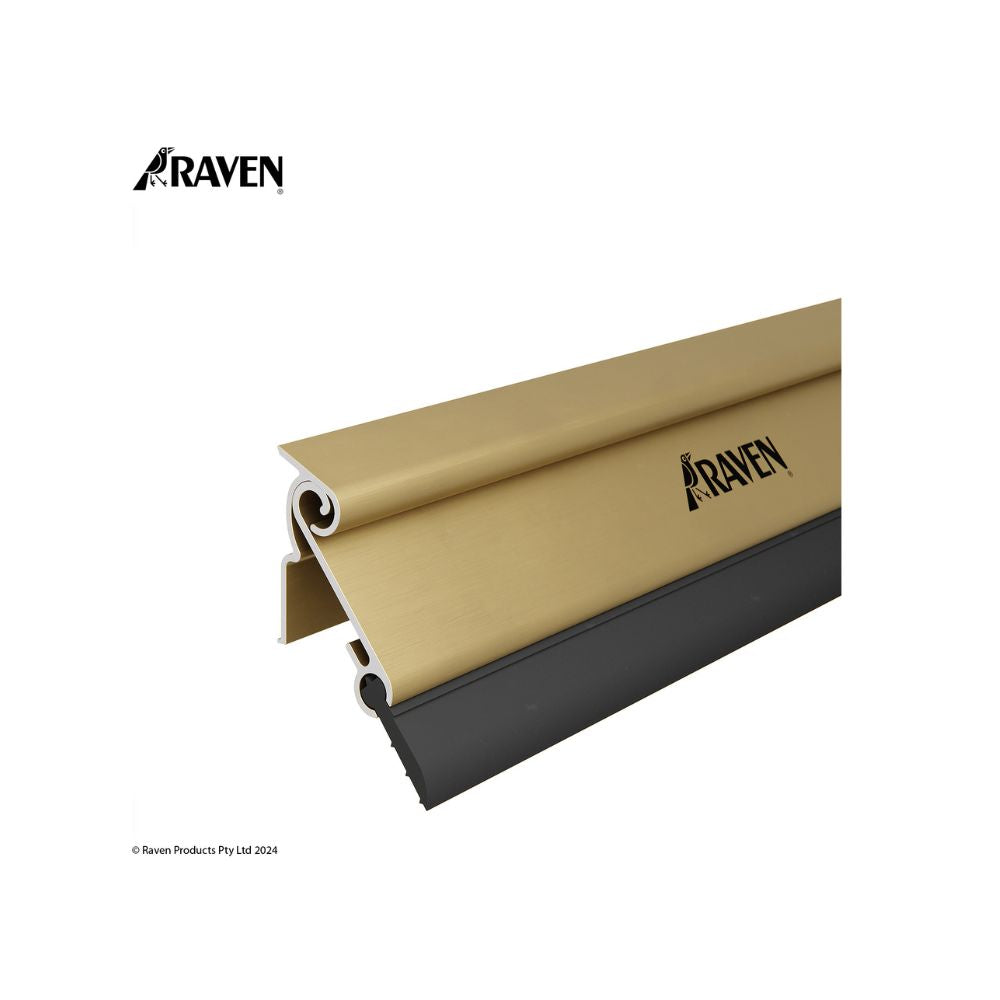

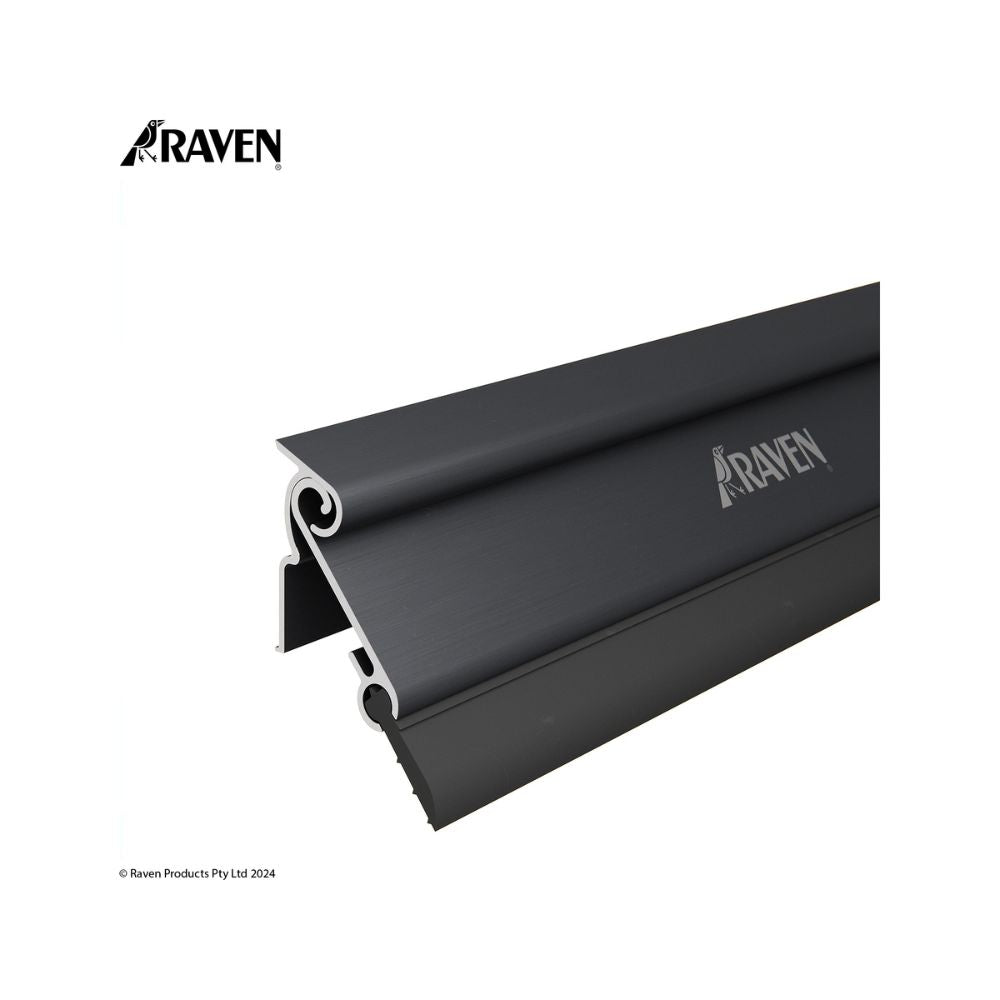

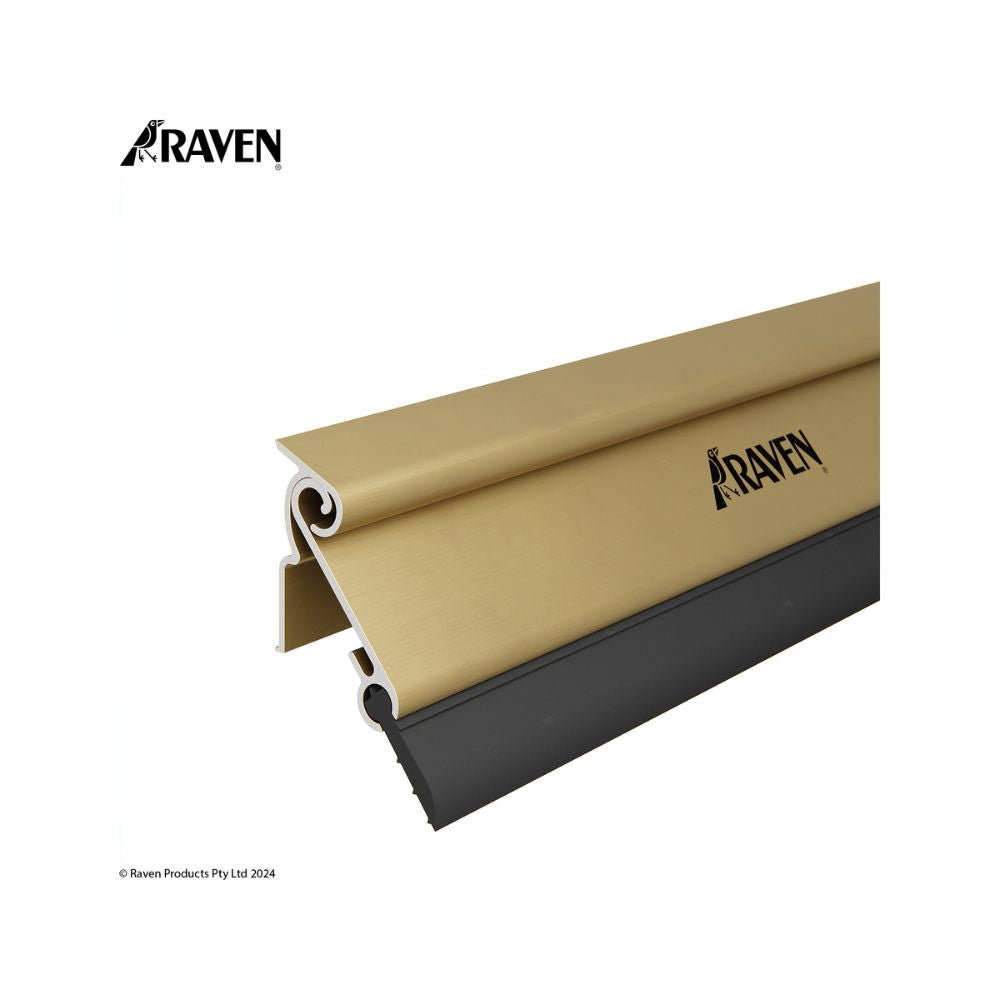

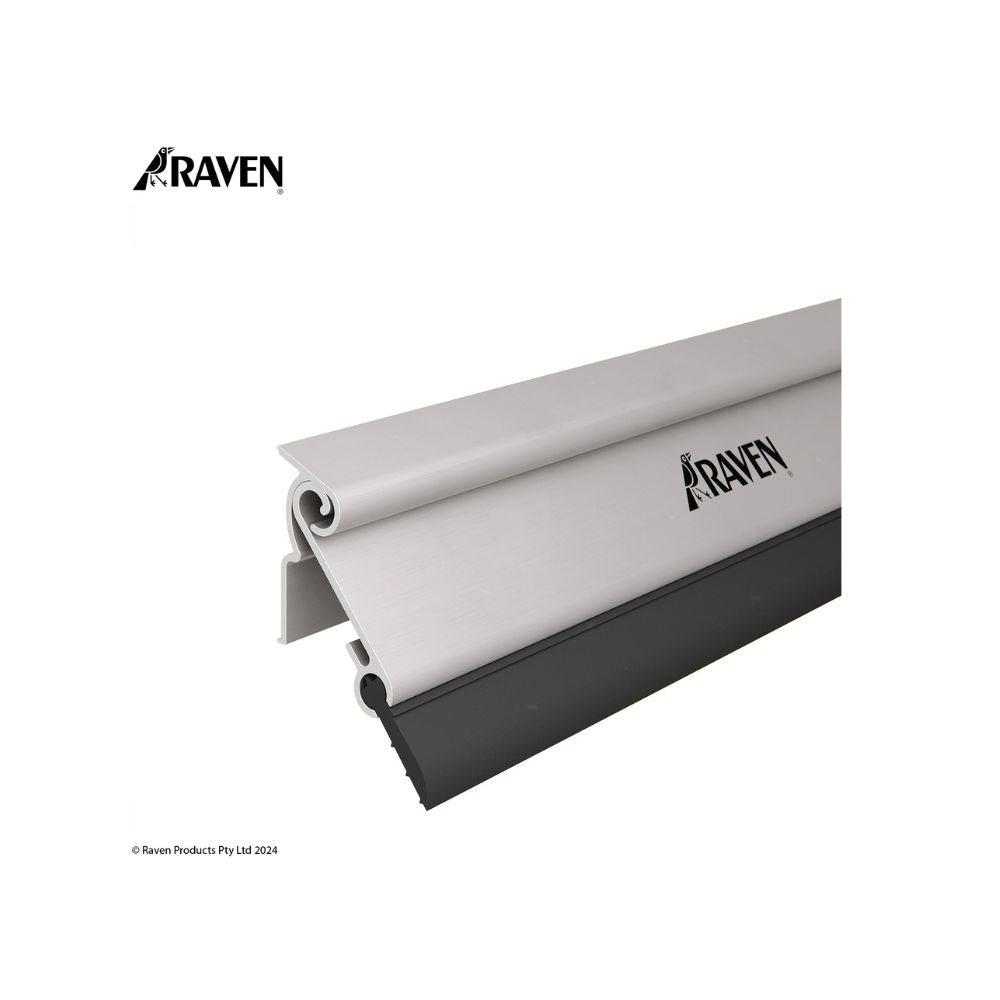

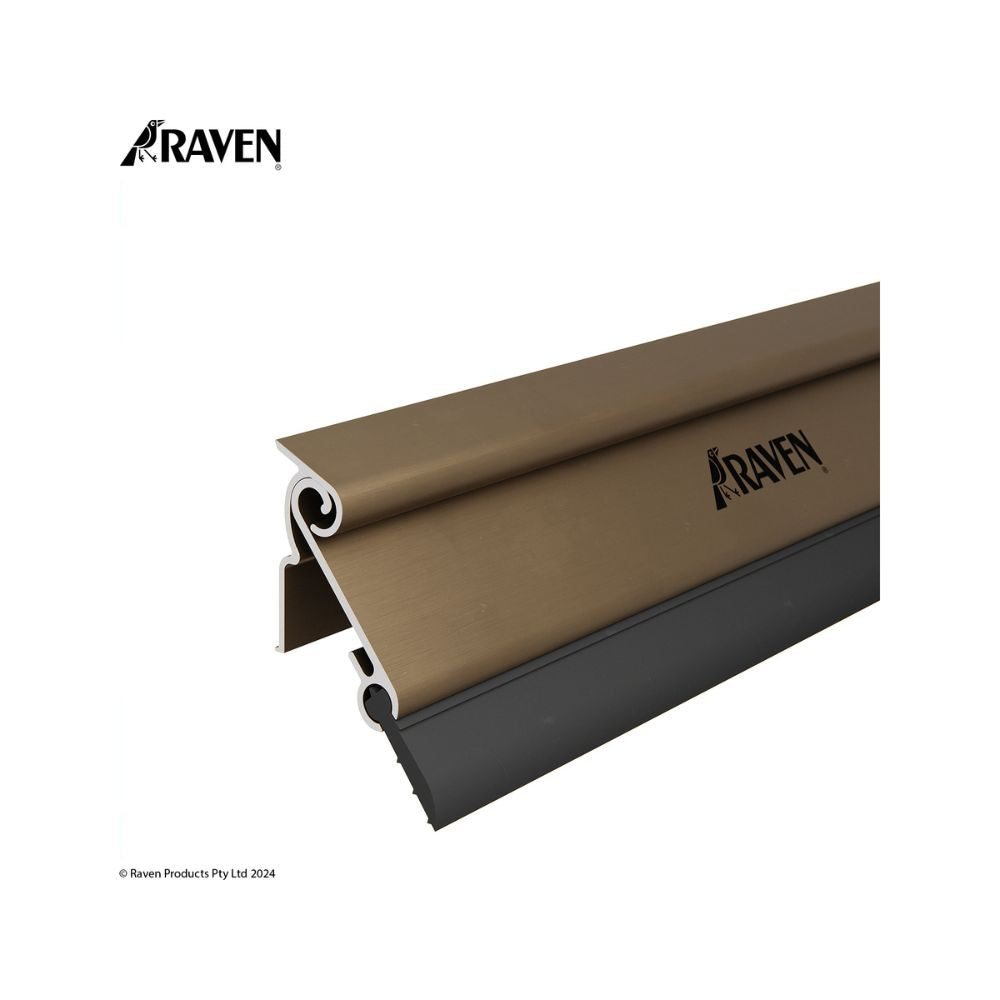

Available Colours: Black Anodised, Bronze Anodised, Gold Anodised, Silver Anodised

Material: Aluminium

Material Description: Anodised aluminium, rubber seal

Door/Frame Construction: Timber

Door Type: Single Inward Opening

User-determined gap: No

Prior to installation gap: No
