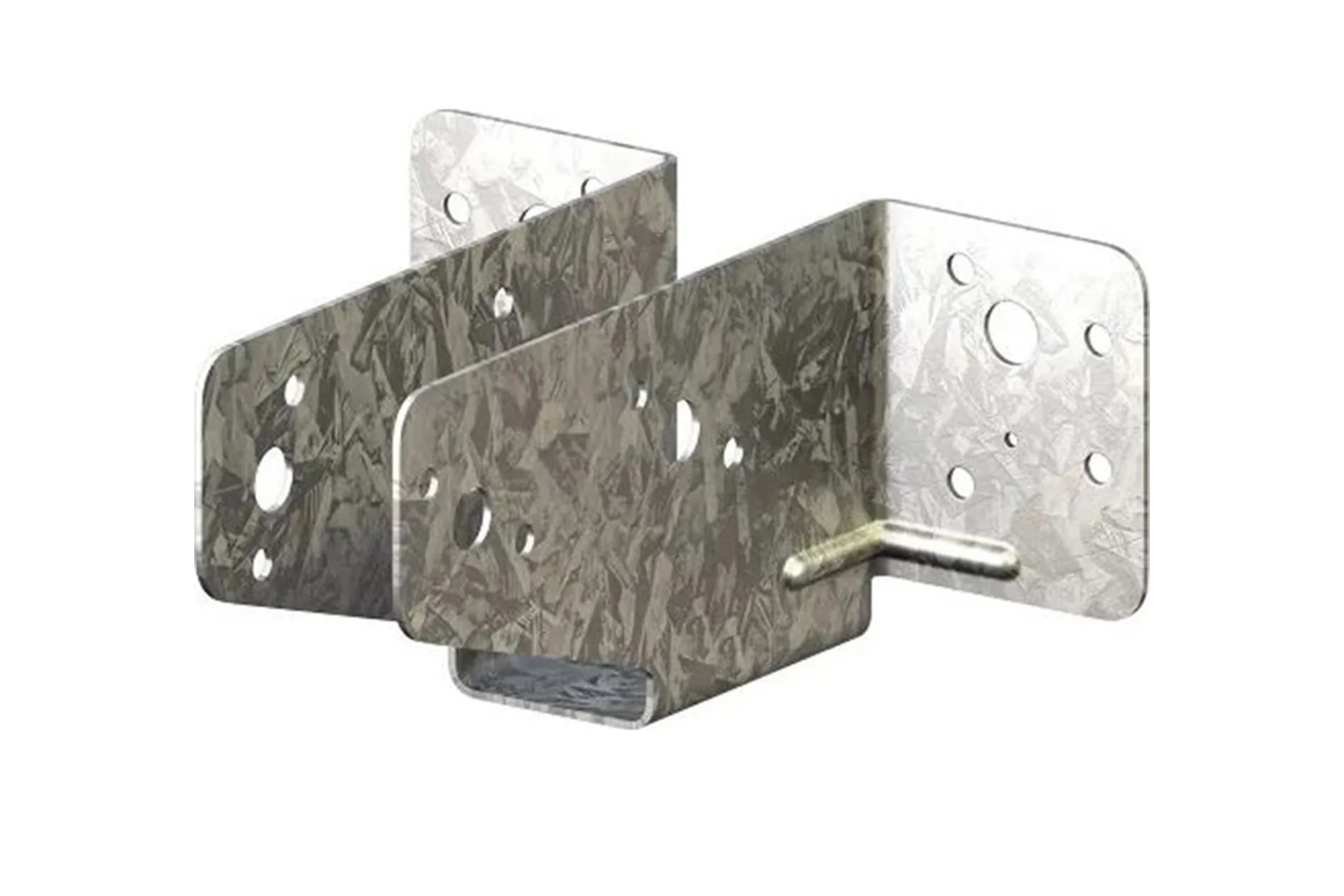

Mitek® FastFit MkIII Girder Bracket

MiTek

Mitek® FastFit MkIII Girder Bracket

SKU: GB340

$20.20

The Mitek® FastFit MkIII Girder Bracket can be quickly and easily installed using either M12 bolts or MiTek anti-split self-drilling screws.

  • Used for fixing standard trusses to the side of girder truss bottom chords
  • Easily installed with M12 bolts or MiTek anti-split self-drilling screws
  • Galvanised for resistance against corrosion
  • Perfect for withstanding large uplift loads in cyclonic areas when paired with washers and extra screws
  • Cost effective fixing method



This Mitek® FastFit MkIII Girder Bracket Product complies with the National Construction Code Series and Australian Standards.

For more options, explore Bowens range of brackets online.

Collections: All Products, Fasteners & Fixings, Hangers & Brackets, Hardware, MiTek, Timber Connectors & Bracing

Type: Brackets and Reinforcement Braces

Uses:

The Hip Girder Bracket is used in conjunction with
FastFit Girder Brackets for fixing a hip truss/rafter to a
girder truss bottom chord at the girder to girder junction.

  • Steel Grade: G300
  • Thickness (Total Coated): 1.55mm
  • Galvanized Coating: Z275
  • Screws: MSA1430 – MiTek No. 14 x 30mm anti-split self-drilling
    HD galvanized screws for use with double ply girder trusses
    Qty – 8 for fixing with GB340
    Qty – 16 for fixing with GB440/GB475
    For triple ply girders, fix extra MSA1465 screws from behind
    Qty – 3 for fixing with GB340
    Qty – 8 for fixing with GB440/GB475
  • Nails: MiTek 30 x 2.8mm hot dipped galvanized
