Rothoblaas TITAN PLATE C Plate for Shear Loads
SKU: TCP200

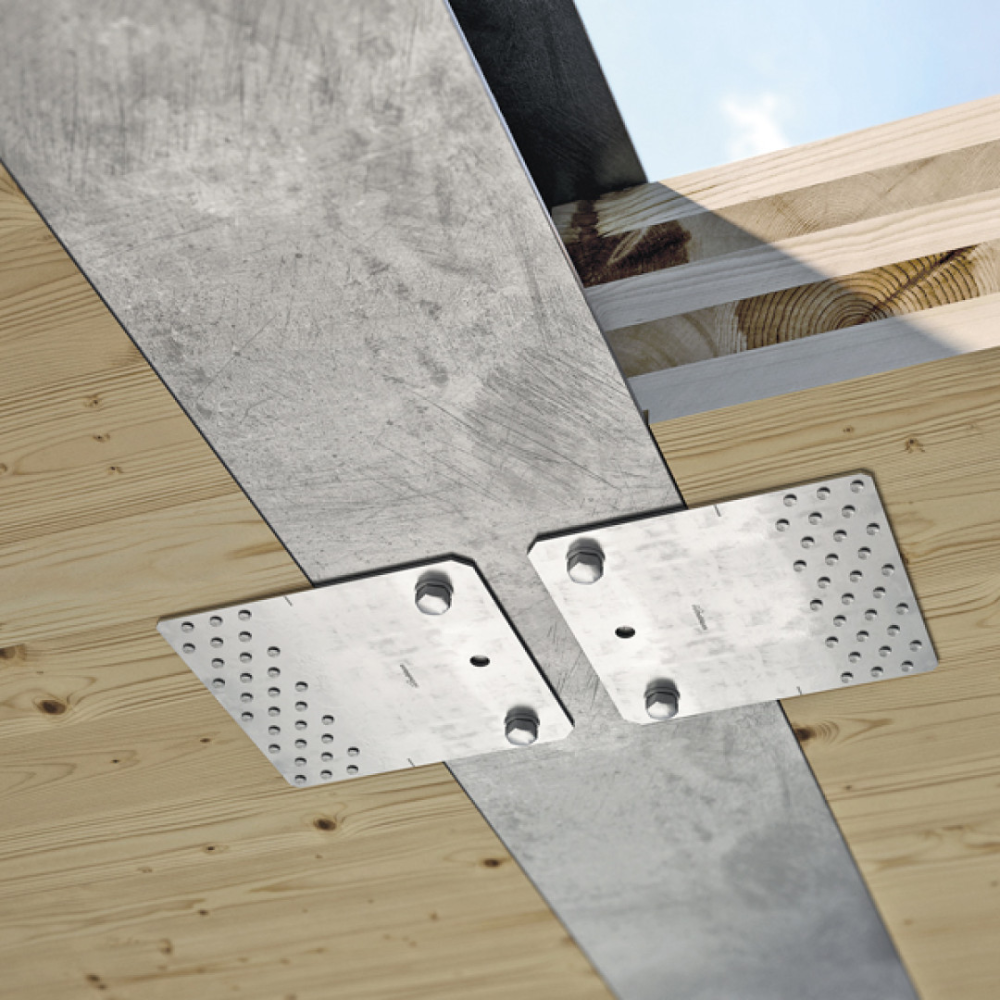

TITAN PLATE C perforated plate is the metal plate for shear loads that can be used for CLT panels and framed panels continuous connection to the substructure.

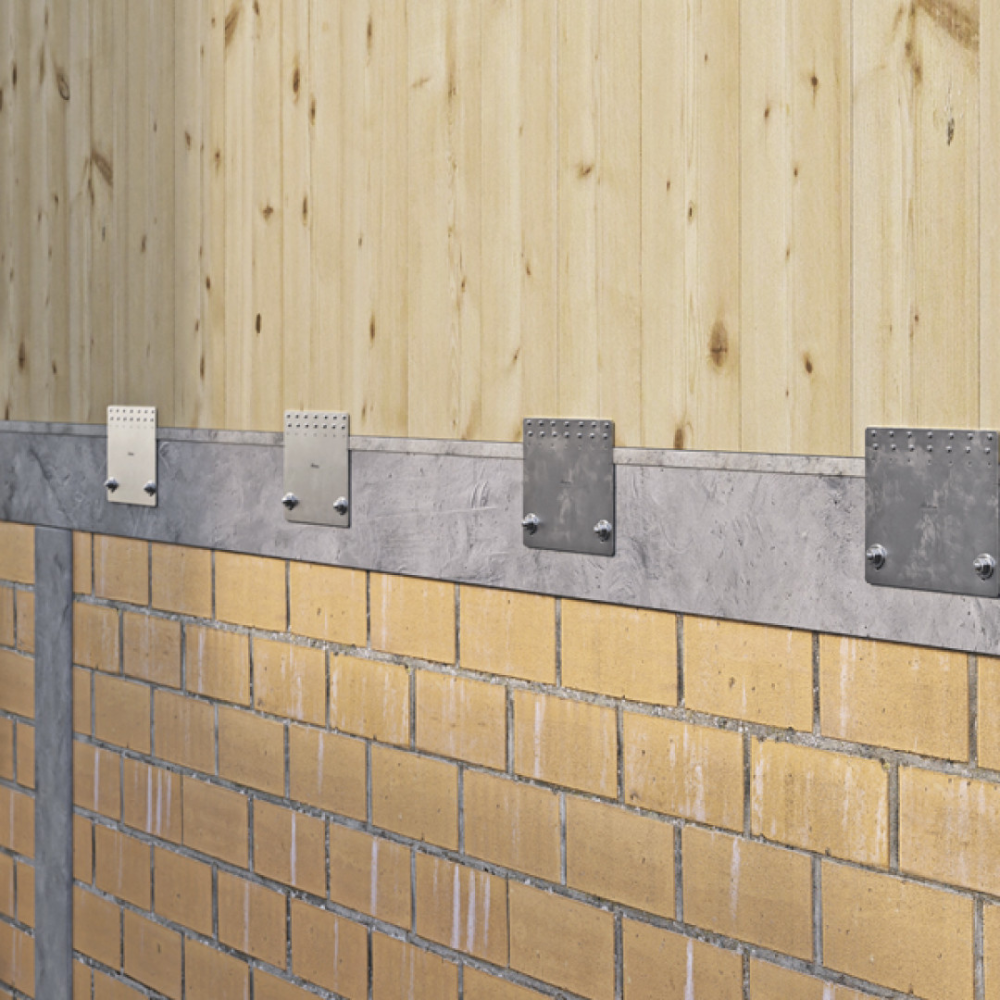

Unlike other perforated plates, it is ideal for making added stories and flat joints in general between elements in concrete or masonry and CLT panels and for creating continuous shear connections. Available in 2 versions.
Collections: All Products, Hardware, Plates & Stiffeners, Rothoblaas, Timber Connectors & Bracing
Type: Timber Connectors
| CODE | B (mm) | B (in) | H (mm) | H (in) | s (mm) | s (in) |

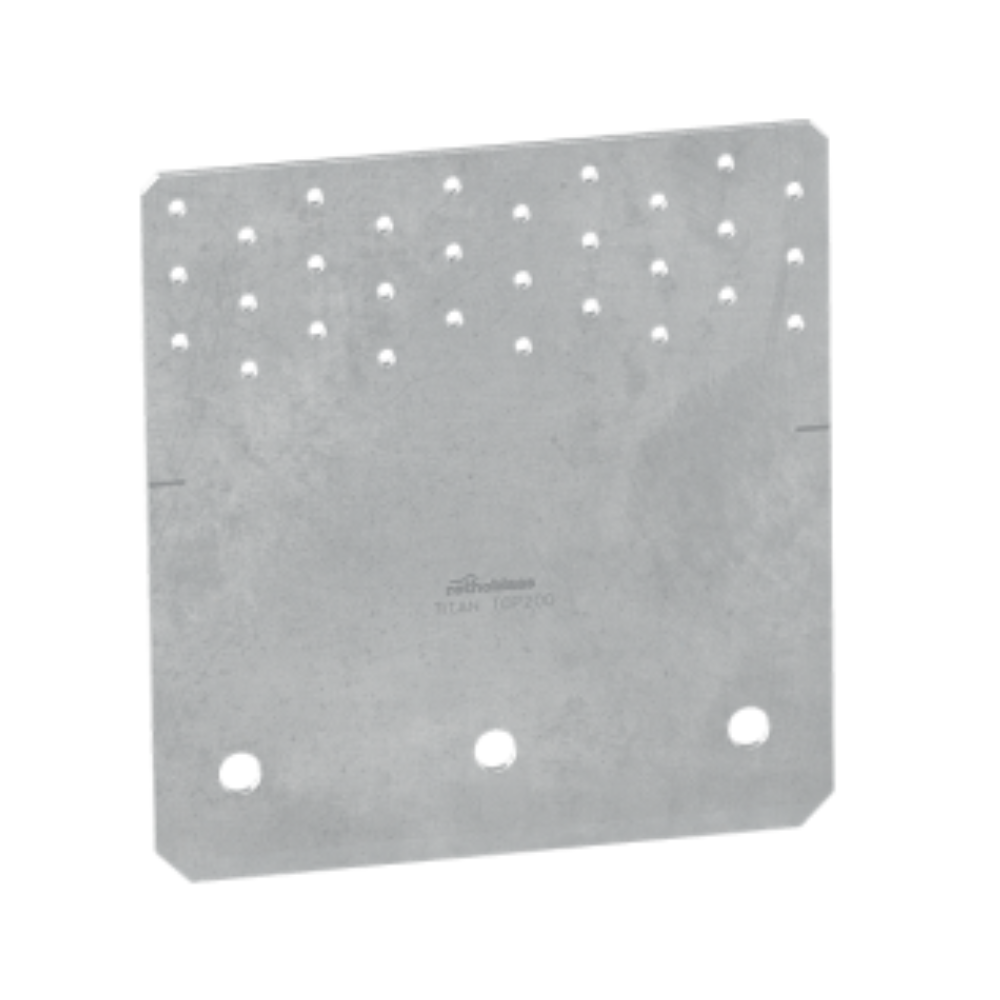

| TCP200 | 200 | 8 | 214 | 8 7/16 | 3 | 0.118 |

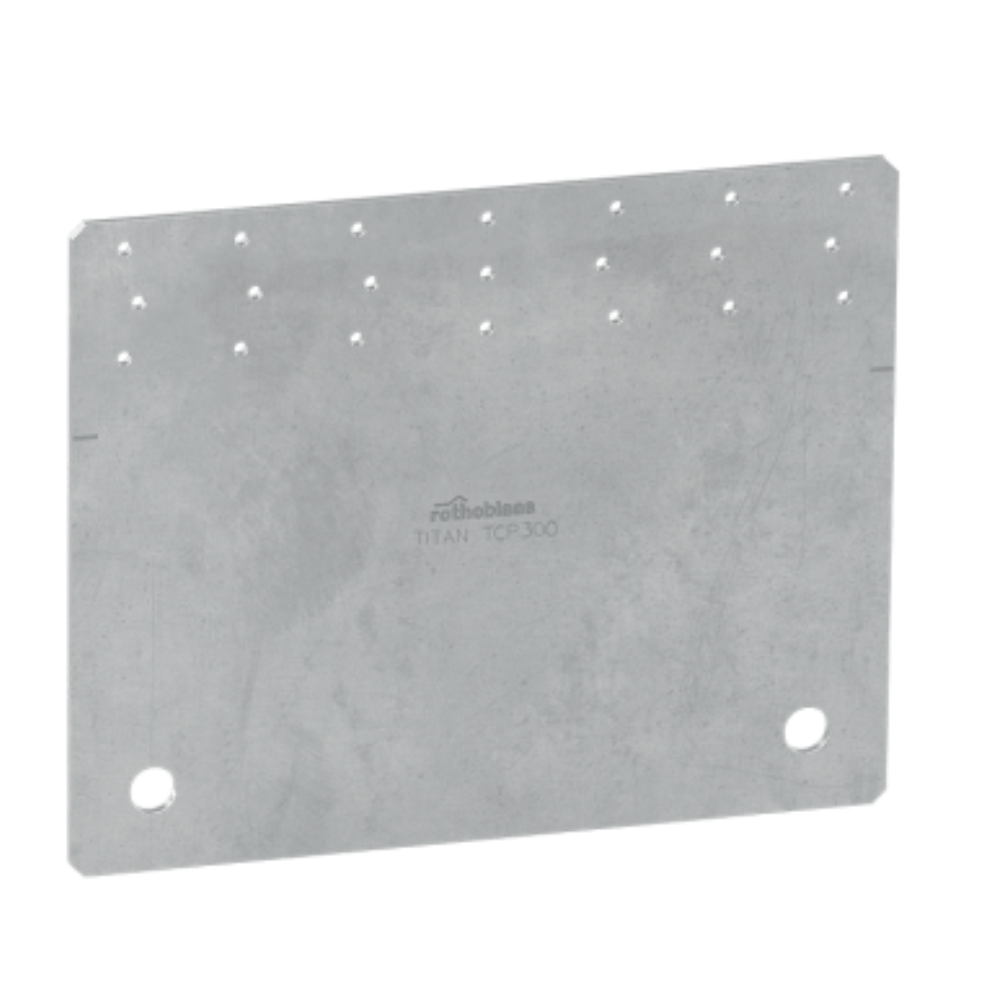

| TCP300 | 300 | 11 3/4 | 240 | 9 1/2 | 4 | 0.157 |
