Raven RP2A Door Bottom Sweep Seals 1000mm - (Clear Anodised)

Product Specifications

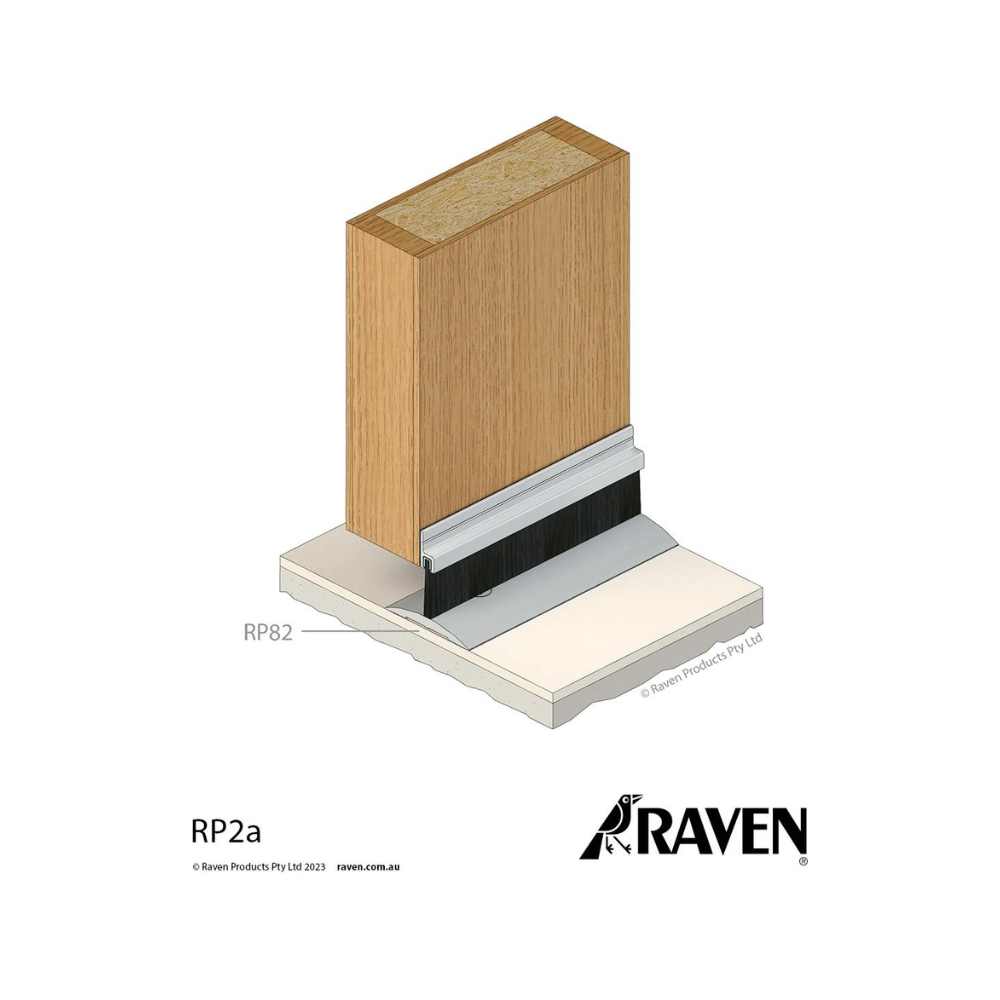

Location: Bottom of single, double, sliding and double acting doors. Suitable for hard, flat surfaces.

Size/Length: 915mm, 920mm, 1000mm, 1220mm, 1250mm, 2000mm, 2250mm, 2500mm, 3000mm

Fixing: Screw Fixed, Self-adhesive

Fixing Note: Self-adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.

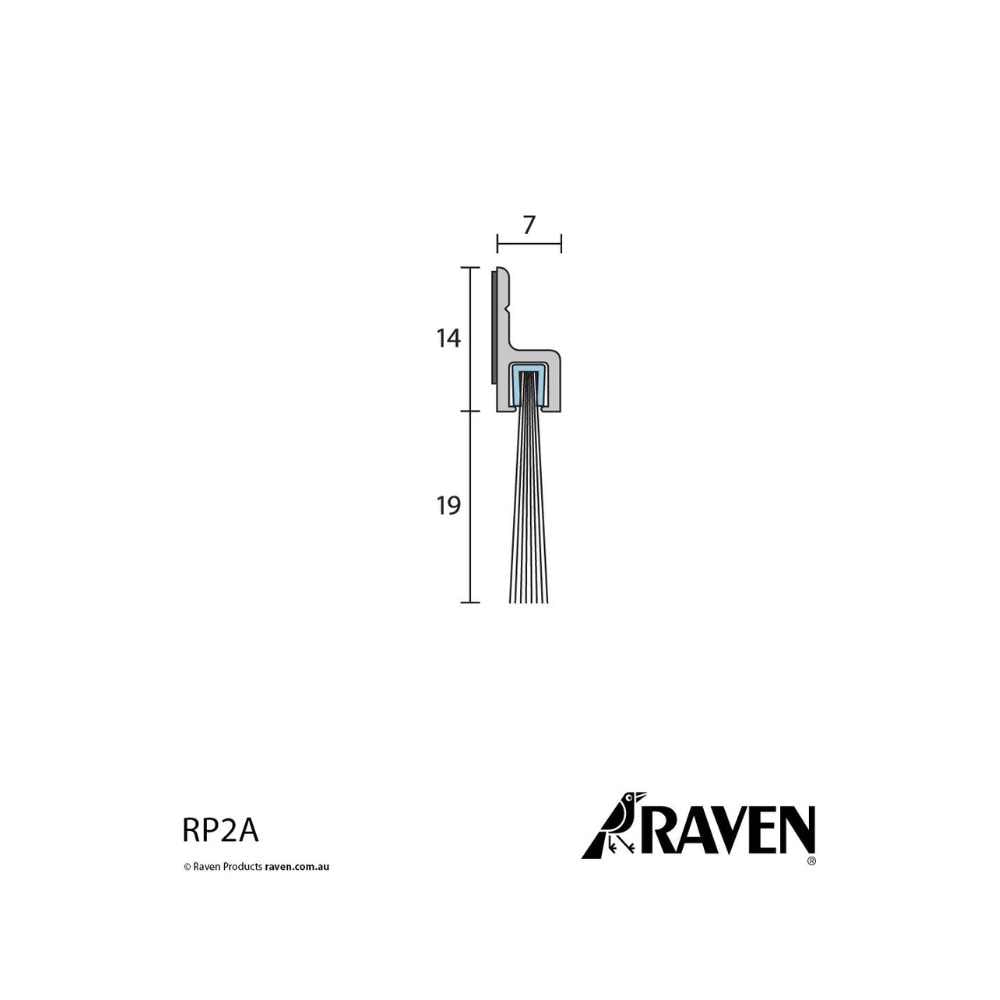

Min & Max Gap: 0mm to 19mm

Replacement Seals RP2

Available Colours: Bronze Anodised, Gold Anodised, Painted (Extra Cost), Silver Anodised

Material: Aluminium

Material Description: Anodised aluminium with black fine, dense, UV stabilised nylon filaments in a galvanised steel spine.

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Door/Frame Construction: Timber, Aluminium

Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding, Pivot, Security Screen, Bi-fold

User determined gap: Yes

Prior to installation gap: No
