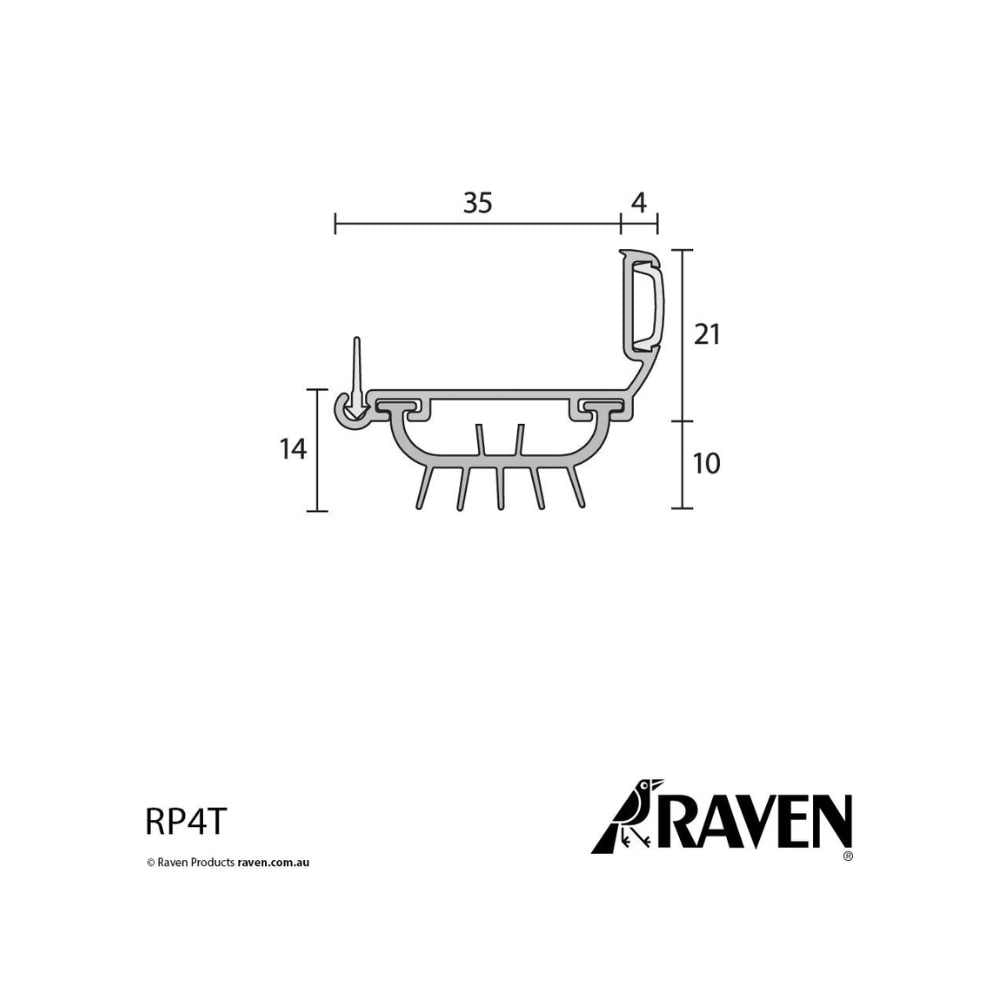

Raven RP4T Door Bottom Sweep Seals

Product Specifications:

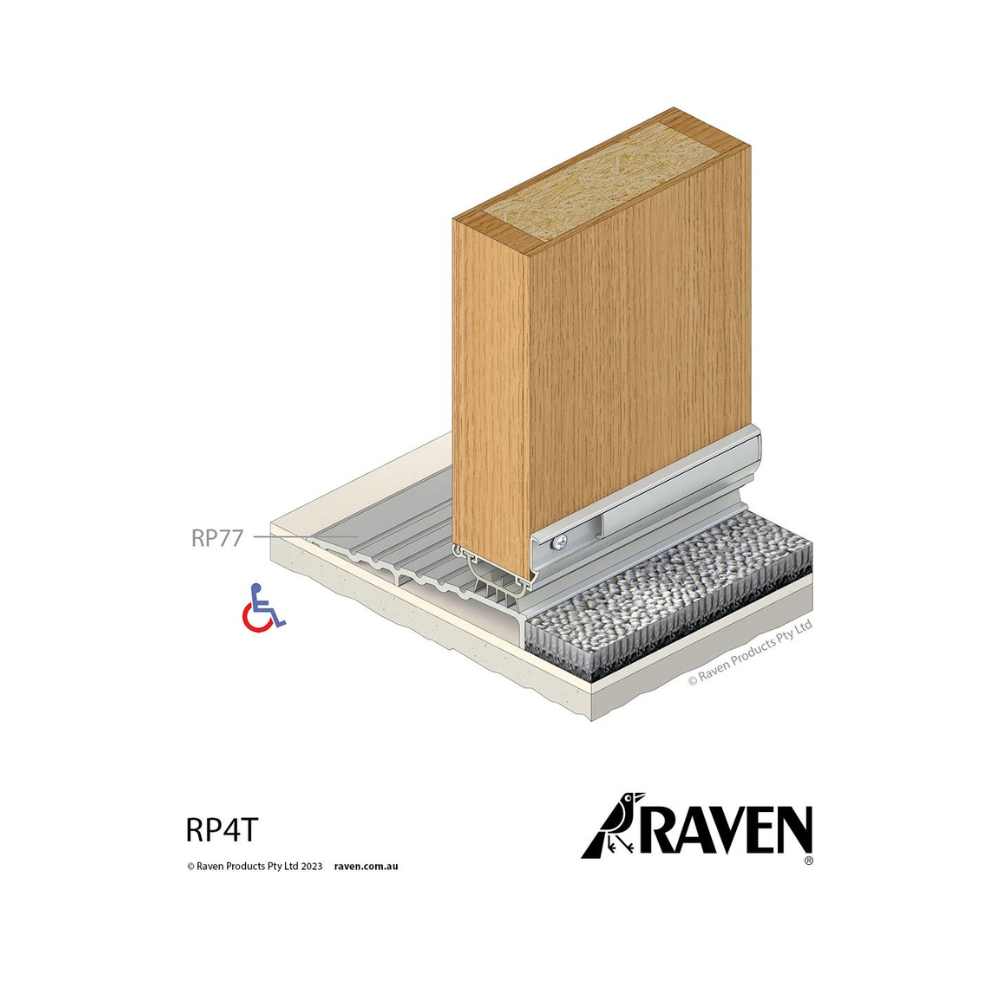

Location: Roll-up doors. Single and double butt hinged doors or bulkhead applications. Minimum door thickness of 35mm.

Size/Length: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 3000mm

Fixing: Screw Fixed

Fixing Note: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.

Min & Max Gap: 14mm to 20mm

Replacement Seals: RP404, RP404b

Available Colours: Black Anodised, Bronze Anodised, Painted (Extra Cost), Silver Anodised

Material: Aluminium

Material Description: Anodised aluminium with flexible PVC gaskets.

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Door/Frame Construction: Timber, Aluminium

Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Pivot

Garage Door Type: Roll-up, Panel-lift

Gap Description: (without threshold plate)

User determined gap: No
