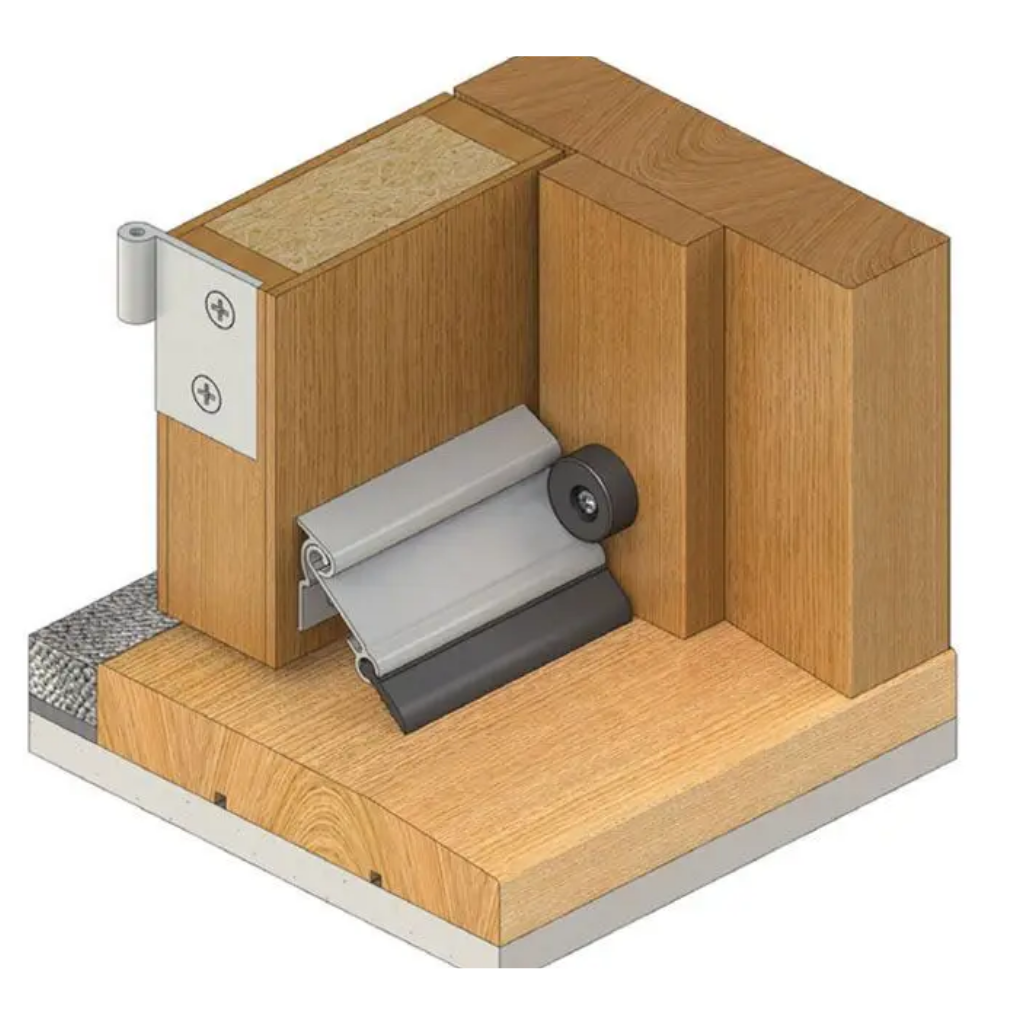

Raven Raven RP3 Automatic Door Bottom Seal - Clear Anodised Aluminium
SKU: R3C
A cam activated, lifting action, automatic door bottom seal. It is quick and easy to install without cutting or removing the door and uses concealed fasteners. This DIY product has been granted an Australian Design Award. Ideal for residential and light commercial applications such as motels and retirement villages.
Can be used in conjunction with Raven threshold plates.
Location: Bottom of single inward opening butt hinged doors.
Min/Max Gap: 1mm to 16mm.
Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15µm).
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied. Fixing holes are pre-slotted.
Seal:RP303. Black EPDM or TPE.
Sizes: 915mm and 1220mm maximum (between door stops).
Collections: All Products, Door Hardware, Door Stops & Catches, Raven Products
Type: Door Seals
